涟漪是一种极具吸引人的自然景观

持续扩散，荡漾的水波，时刻转换着动与静之间的关系。

自然的力量多么神奇，充满着对抗与和谐。

国内一直少见涟漪的案例，原因何在？

是设计？是设备？是价格？还是施工工艺？

这篇文章为大家解惑。

成都大邑安仁院坝涟漪水景这应该是国内第一个程控涟漪的景观案例，安仁成都院坝项目的业主方团队，在对效果，施工难度，成本造价各个环节都不惧挑战，才得以呈现这样一个案例。

// 平面布局 Layout

在涟漪的平面布置上，我们对景观设计的内容和风格进行了研读，然后结合涟漪设备的安装要求，进行了整体的平面布置。涟漪发生器有各种规格，我们根据大小涟漪振动开的直径来搭配，实现更加接近自然的涟漪配比。

In the layout of the ripple, we studied the content and style of the landscape design, and then combined the installation requirements of the equipment to carry out the overall layout. For the reason that the Ripple generators have various specifications, which gives us the chance to match them according to the size of the ripple vibration opening diameter in order to achieve a more natural ripple ratio.

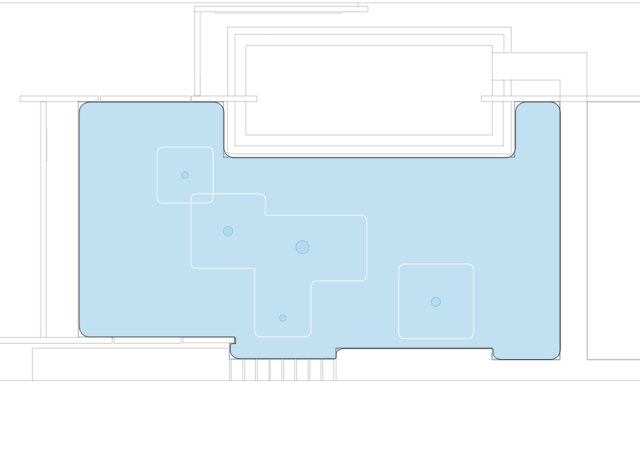

涟漪平面布置图▲

// 要点和难点 Difficulties

敲小黑板啦~~

ⓞ 产生涟漪效果的设备，对水位的要求非常严格，一般水位严格要求控制在5mm以内。

5mm？对的，没有写错，水深是决定【能不能形成涟漪】最重要的部分。在这个项目中，各方对我们要求的水深一直存疑，最后效果的实现还是调到了目标水深。施工单位的土建工艺细致度起了决定性的作用。

ⓞ The water level requirements of the ripple effect equipment are very strict, the general water level requirements are strictly controlled within 5 mm.

5mm? Yes, it’s true, the depth of water is the most essential part for the ripple effect, which means whether it could form ripple successfully. In this project, although all parties had doubts about the required water depth at first, the water depth was adjusted to the target depth in order to carry out the final effect. In most cases,the fineness of civil construction technology of construction companies always plays a decisive role.

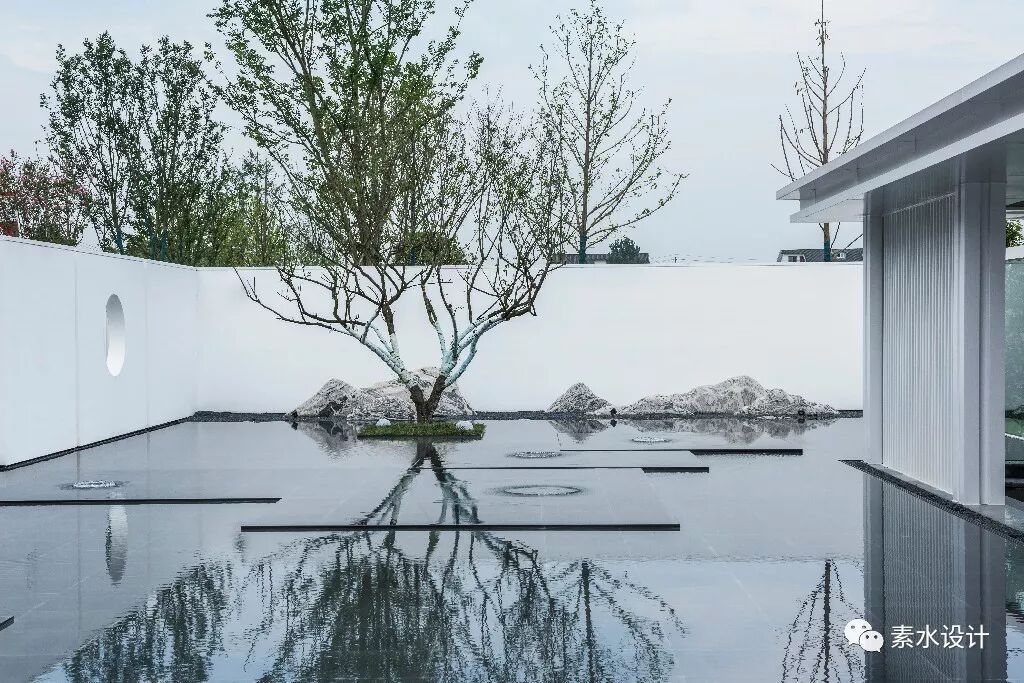

涟漪部分5mm水深效果▲

ⓞ 为实现最好的涟漪效果，池底铺装必须使用黑色抛光面的材质。

池底铺装的颜色和表面处理方式，直接决定了【涟漪可见不可见】。水池反射能力越强，涟漪的效果越明显。水池材料的选择上，例如整石抛光，中国黑石材抛光，树脂类材料抛光。

ⓞ In order to achieve the best ripple effect, the material of black polishing surface must be used in the bottom pavement.

The color and surface treatment of the pavement at the bottom of the pool directly determine the visibility of the ripple. The stronger the reflectivity of the pool is, the more obvious the ripple is. In selection of pool materials, such as stone polishing, Chinese black stone polishing and resin polishing.

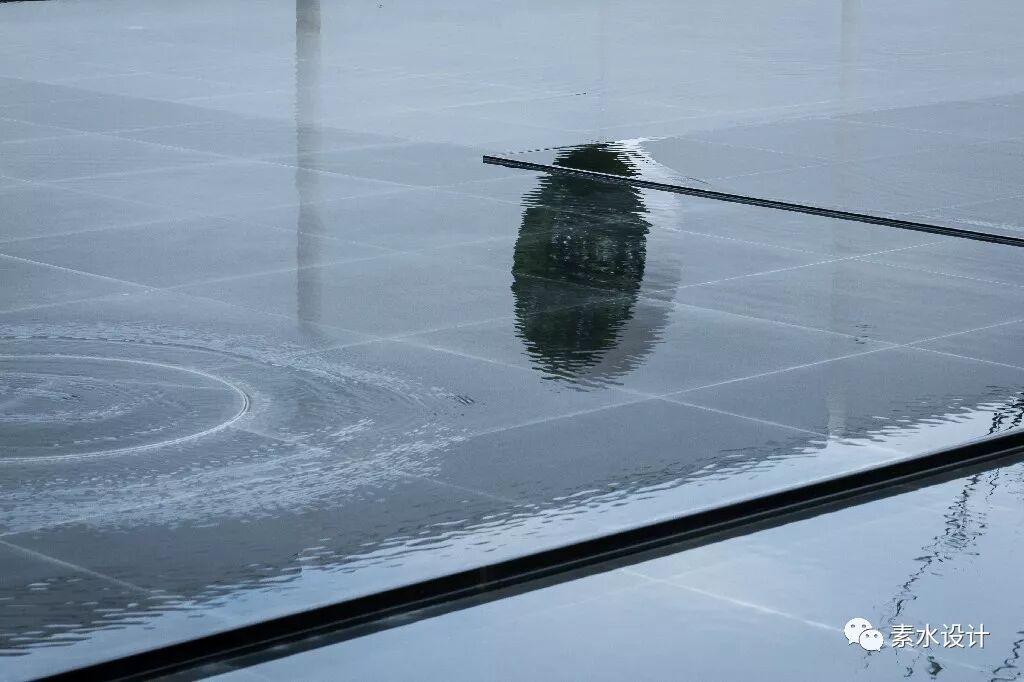

涟漪池底黑色石材▲

ⓞ 为实现最好的涟漪效果，水池周圈必须设置溢水。

涟漪需要设置在周圈有溢水的水池，以防止振开的涟漪撞到池壁回弹，这个决定了【涟漪好不好看】。为了确保稳定的溢水效果，溢水边的堰口需要做到绝对水平。

ⓞ In order to achieve the best ripple effect, overflow must be set around the pool.

Ripples need to be set in pools with overflow around them to prevent the ripples from bouncing back against the wall, which determines the beauty of the ripples. So in order to ensure a stable overflow effect, the weir at the overflow side needs to be absolutely level.

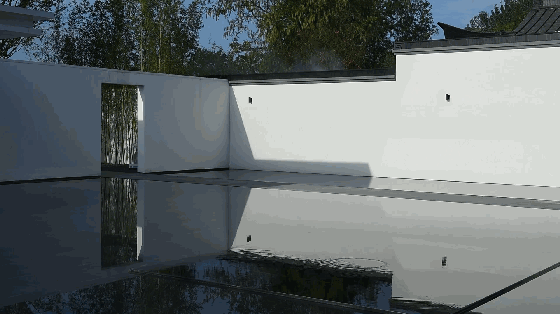

涟漪池部分设置溢水▲
